Low standby power ≤ 0.3W (Optional)
Door-in-door protection
Automatic closing (1-9 minutes adjustable)
Built-in WiFi (Optional)
Electronic limit switch
Separate light control
Air fresh function
1-button control & 3-button control open/stop/close of transmitter’s switch
T rail and C rail’s direction switch
Factory Setting’s Restore
Soft start and soft stop
Bounce off resistance
Manual release handle in case of power failure
Alarm system/photo sensor/wall switch/backup battery/external receiver can be added

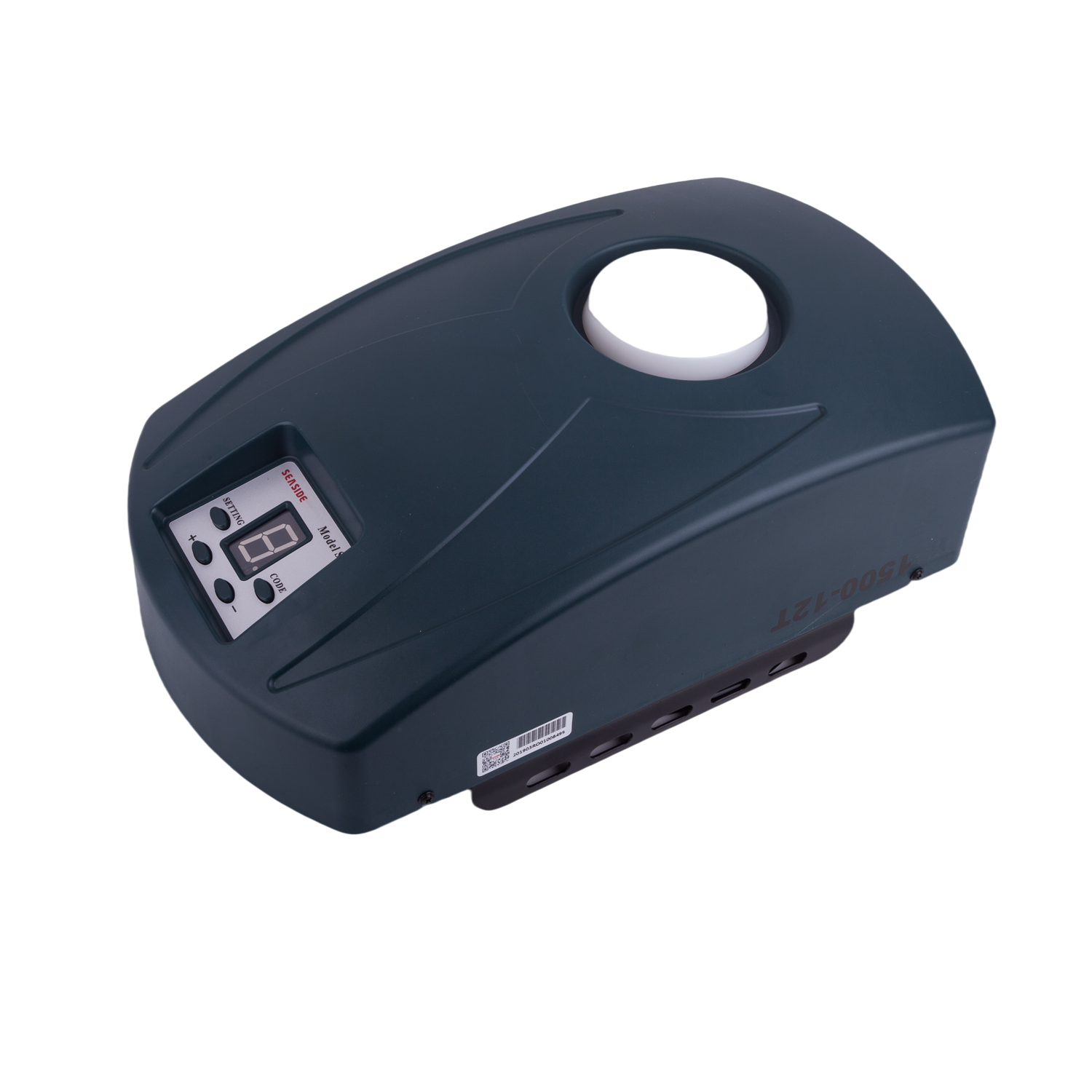

| Model | 2800N | 3600N | ||
| Motor Power | 600W | 700W | ||
| Pull and Push Force | 2800N | 3600N | ||
| Max,Door Area Advised | 24㎡ | 30㎡ | ||
| Max, Door Weight Advised | 275-300kg | 275-300kg | ||
| Motor Voltage | 24V/DC | |||
| Rated Voltage | AC230V/AC120V | |||
| Rated Frequency | 50Hz/60Hz | |||
| Ambient Temperature | -20℃～+50℃ | |||
| Rated Operation Time | 4mins | |||
| Rated Operation Speed | 150mm/s | |||
| Radio Frequency | 433.92MHz | |||
| Remote Control Code | Rolling Code | |||
| Range(In Open Areas) | 50m | |||
| Opener Size | 420mm*241mm*160mm | |||
| Package Size | 550mm*300mm*220mm | |||
| Transmitter | T22, 2pcs | |||
| Drive of Rail | Chain or Belt | |||
| Type of Rail | Single rail; 2 sectional rail; 3 sectional rail | |||
| Length of Rail | 3000, 3300, 3600, 3900, 4200, 4500mm | |||
| WiFi | Only support for 500 pcs above | |||
| Customization | Optional | |||
